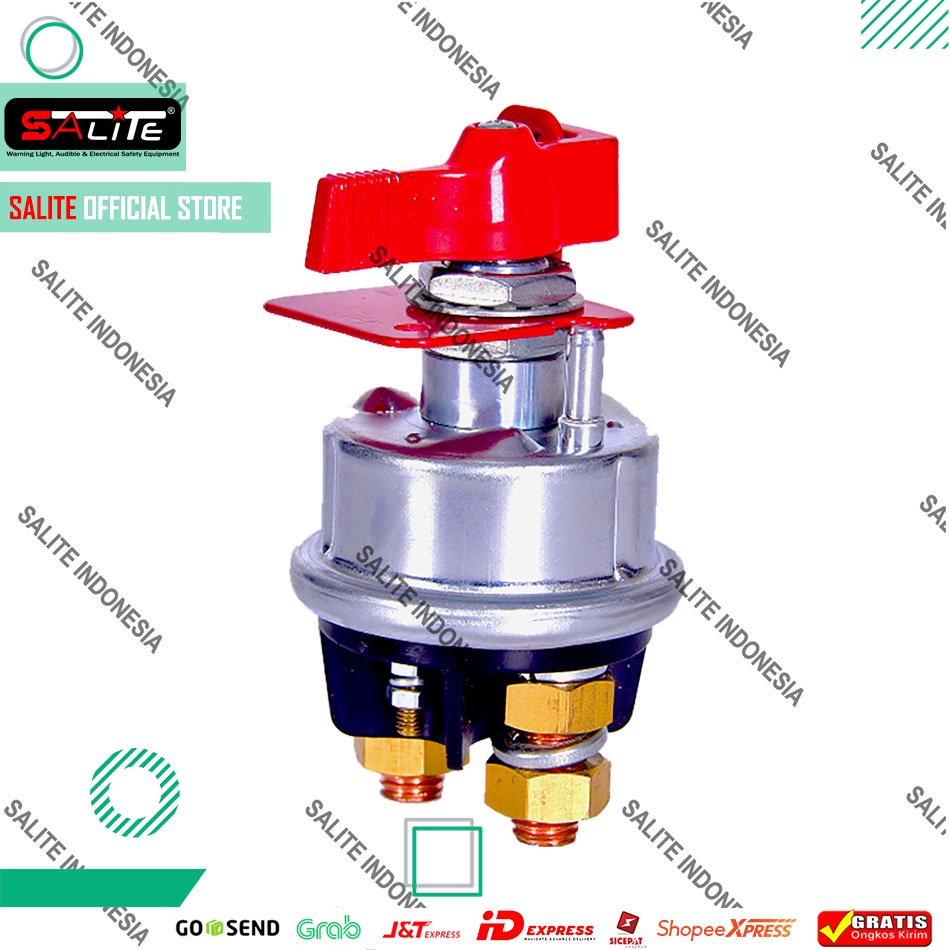

Heavy Duty Disconnect Switch | Battery Disconnect Switches

About This Product

Heavy Duty Handle can be Held in Place with Roll Pin (Included) or #10 Machine Screw (Not Included) M10 Terminals with Divider M10 Studs compatible with 3/8 Wire Ends. Universal mounting allows the user to customize their installation to fit specific needs. Slide the handle on the switch, turn to desired position, and remove the handle. M10 Studs Compatible with 3/8 Wire Terminals Use Mounting Bracket as a Template to Mount the Switch in any Panel up to 1/2 Thick Mounting Bracket and Hardware Included, Mount in 96 Configurations Install the Face Plate Install the face plate and align the notch in the face plate with the index pin on the switch. Features Labeled Face Plate Shows On and Off Position as well as operational direction. Motorcycle Battery Cut Off Switch Terminal -Anti Leakage Disconnect Battery Disconnect Switch 12v Heavy Duty Disconnect Switch | Battery Disconnect Switches Battery Cut Off Switch 12v Alternatively, a #10 machine screw can be used with a lock nut to secure the handle for easier removal. (Not Included)96 Mounting Configurations! Installation Instructions Install the Mounting Bracket Use the 3 larger holes and included hardware to mount the bracket in a convenient location. Keyed battery disconnect with detachable key. Provides security and prevents battery drain. Maximum load is 500 amps for 5 seconds at 12 volts DC with a 100 amp continuous duty rating. Features copper studs and mounting holes in flange. Includes extra key Aazon.co: Fastronix Aluinu Battery Disconnect ounting Bracket for... Terminal Continuous Duty Rating: 500A@12VDC 300A@24VDC Push the roll pin through the hole in the handle. Sealed Internals to IP66 / IEC529 Standards Install the Handle Slide the handle into place on the operation shaft.
